1.DESCRIPTION:
Y series is developed as for heavy duty monitors, which can load the weight up to 15kg. And Y10U can fits for screen size up to 43”. The innovative design of the visual adjustment weight capacity can provide more convenience to the users. Detachable VESA plate also make the installation easier. Expanded USB3.0 can realize data transmission and device charging, which adds convenience to work.
2.FEATURES:
1)Detachable VESA Plate Design for quick and easy installation.
2)Strong arm design for large weight capacity from 2-15kg.Suitable for large displays up to 43 inch, it can perfectly balance the display.

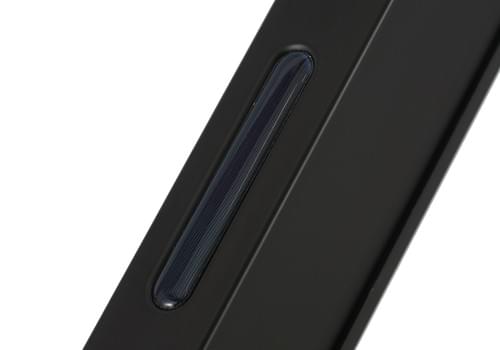

3)Built-in Cable Management.
4)Two installation methods for choice.

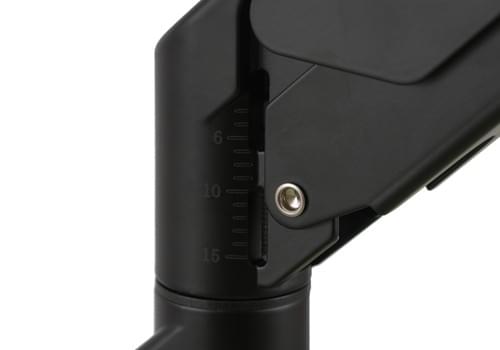

5)Visualized adjustment of gas spring strength that better for user’s operating experience.

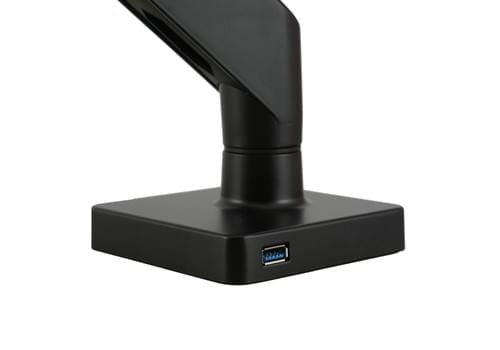

6)With USB3.0 high transmission socket configuration, both data transmission and device charging are available.
3.SPECIFICATIONS:

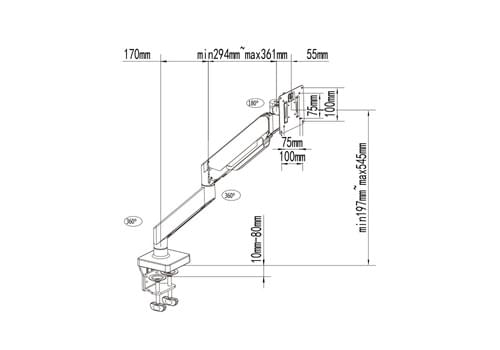

Height Range:200-547mm(7.7”-21.4”)
VESA Compatible:75x75,100x100
Screen Size:13”-43”
Weight Capacity:2-15kg(4.4-33lbs）
Tilt Range:+90°~ -45°
Swivel Range:+90°~ -90°
Screen Rotation:+180°~ -180°

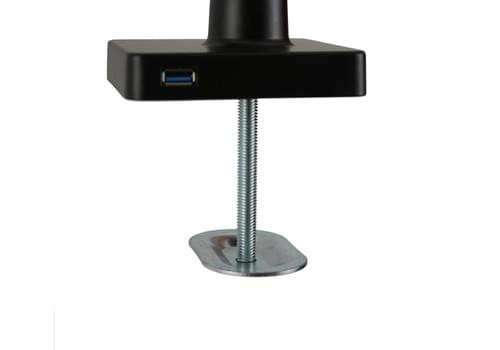

Installation:Clamp&Grommet

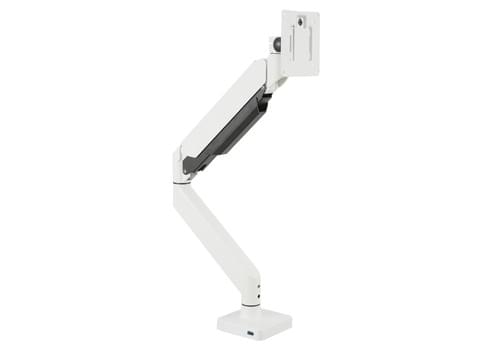

Color:Black ，White
