1.DESCRIPTION:

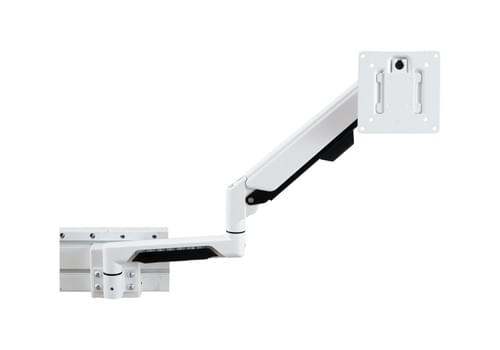

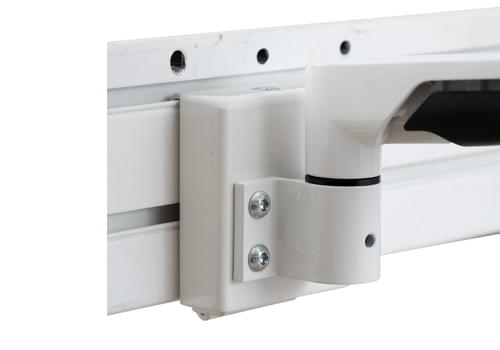

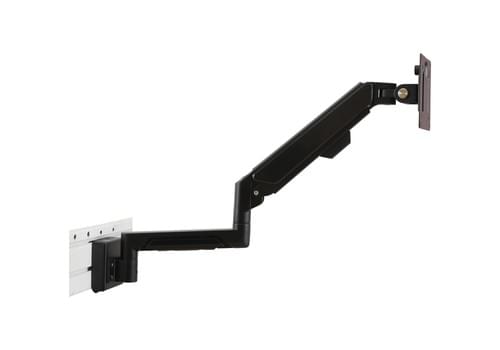

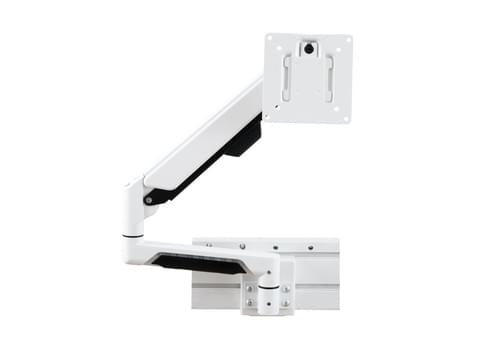

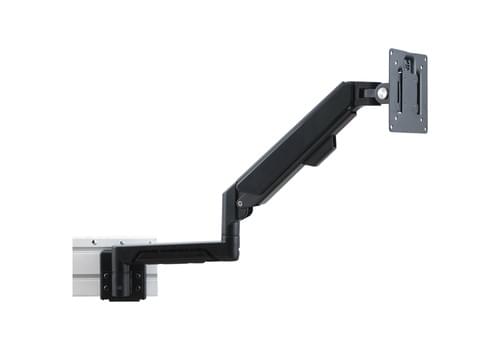

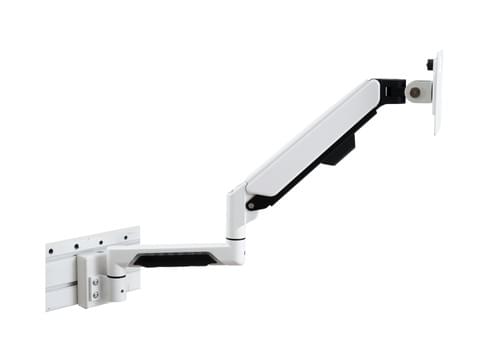

Designed for most screens from 13”-32”, weight from 2-9kg, Ergokare Z series has owned full range of monitor arms. ZL104 is a bracket that is installed as a screen. The screen buckle adopts quick-release installation,which can be use for screens of different widths. Combined with horizontal arm and gas spring arm, the height rage improved to 259mm(10.2”). Reasonable cable management can perfectly hide the wires. Detachable VESA plate also make the installation easier.
2.FEATURES:
1）Detachable VESA Plate Design for quick and easy installation.
2）Built-in Cable Management.
3）Fully Adjustable arm for comfortable viewing angles.
4）Aluminum bracket structure, fashion painted appearance and high-grade metal texture.
5）There is a gas spring inside, which makes the adjustment smoother.
6）The screen buckle adopts quick release installation, which can be adapted to screens of different widths.

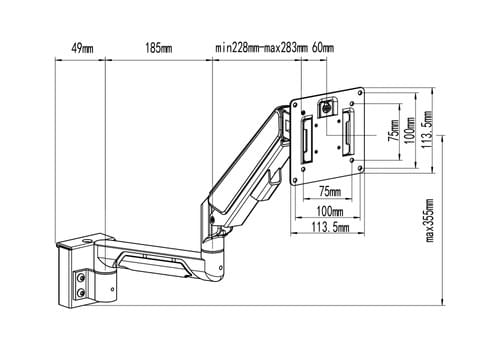

3.SPECIFICATION:
Height Range:-5 - 335mm(-0.2”-13.9”)
VESA Compatible:75x75,100x100
Screen Size:13”-32”
Weight Capacity:2-9kg(4.4-19.8lbs）
Tilt Range:+90°~-45°
Swivel Range:+90°~-90°
Screen Rotation:+180°~-180°
Installation:Screen
Color:Black, White
