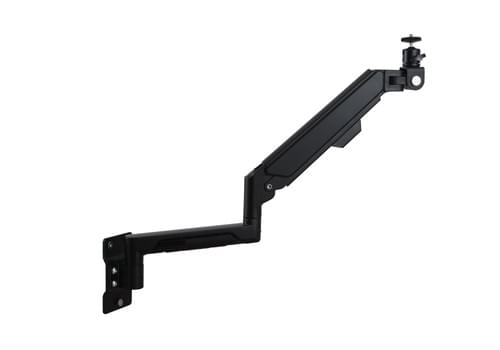

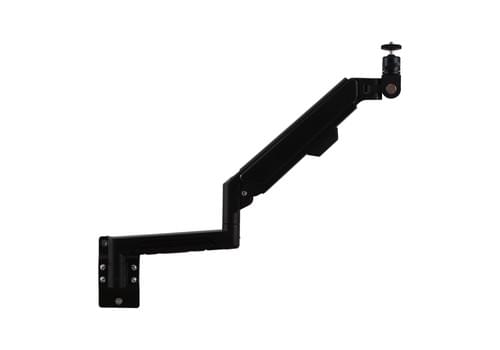

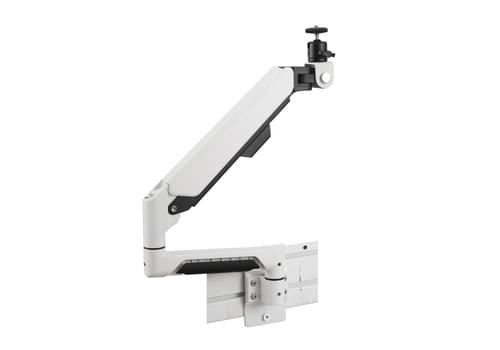

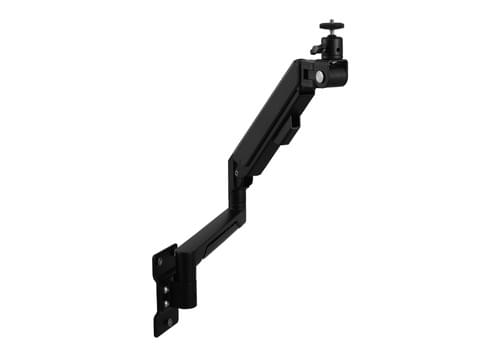

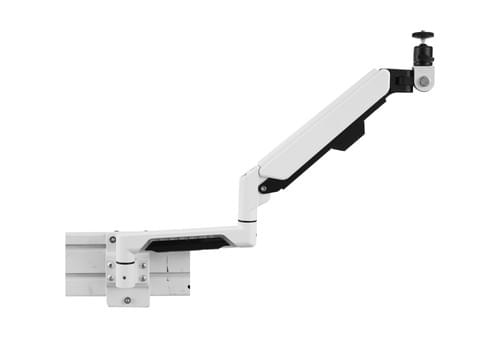

ZL108
1.DESCRIPTION:
Now the application of projectors is popularized. In order to meet the needs of the market, we launched ZL108, a bracket for supporting 2-9kg projectors. Its installation method is wall-mounted. Combined with horizontal arm and gas spring arm, the height rage improved to 325mm(12.7”), bringing you a comfortable viewing angle. Reasonable cable management can perfectly hide the wires to keep the environment more beautiful and tidy. Detachable VESA plate also make the installation easier.
2.FEATURES:
1)Detachable VESA Plate Design for quick and easy installation.
2)Built-in Cable Management to make the cables and desktop surface clean and tidy.
3)Aluminum bracket structure, fashion painted appearance and high-grade metal texture.
4)There is a gas spring inside, which makes the adjustment smoother and can perfectly balance the monitor.
5)Wall-mounted type, suitable for designated customers.
6)Extended use of projector bracket.
3.SPECIFICATION:

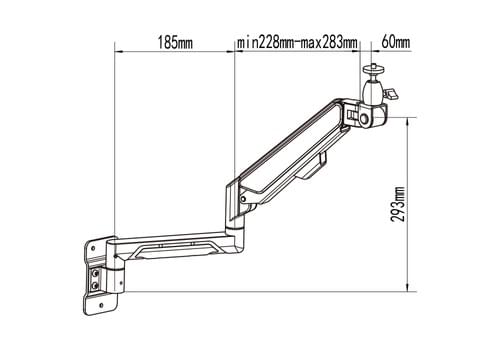

Height Range:28-325mm(1.1”-12.7”)
VESA Compatible:75x75,100x100
Weight Capacity:2-9kg(4.4-19.8lbs)
Tilt Range:+90°~ -90°
Swivel Range:+90°~ -90°
Screen Rotation:+180°~ -180°
Installation: Wall hanging
Color:Black, White
